Generating PDFs with custom fonts using wkhtmltopdf

Generating PDFs with custom fonts using wkhtmltopdf

Generating PDF files with custom fonts can be tricky. In this tutorial we will create a simple Rails app and tackle this problem with two tools: wicked_pdf and wkhtmltopdf.

Example application

The code for an example application we'll be working with can be found on Github. It's a minimalistic app to create sales orders. It was created with Rails Composer, to start off fast.

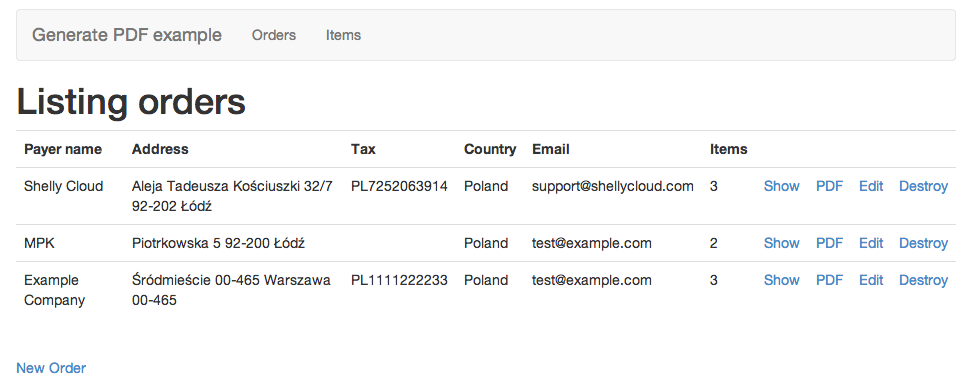

After importing some orders and items with rake db:seed, we can review them:

Generating PDF files

We will be using wickedpdf to generate PDF files. Wicketdpdf is a wrapper around shell utility wkhtmltopdf, which serves PDF files from plain HTML. Wickedpdf doesn't require us to use any specific DSL to create PDF files. Instead it utilizes HTML views that we, Rails developers, are accustomed to. Wickedpdf requires installed wkhtmltopdf, luckily there is a binary version released as a gem, that works on Linux, Mac OS X and Windows. We can start off by adding wicked_pdf and wkhtmltopdf-binary to Gemfile:

# Gemfile

gem 'wkhtmltopdf-binary'
gem 'wicked_pdf'

After running bundle install, we can move on to adding support for PDF format in OrdersController:

# app/controllers/orders_controller.rb

def show
  respond_to do |format|
    format.html
    format.pdf do
      render pdf: @order.payer_name,                  # file name
             layout: 'layouts/application.pdf.haml',  # layout used
             show_as_html: params[:debug].present?    # allow debuging
    end
  end
end

Wicked_pdf supports many more options, we can easily start off with these three. Let's create a layout for our PDF files:

# app/views/layout/application.pdf.haml

!!!
%html
  %head
    %meta{charset: 'utf8'}

  %body
    .container
      %h1 Generate PDF example
      = yield

We still have to create a show view for PDF format (copied from scaffold HTML version):

# app/views/orders/show.pdf.haml

%p
  %b Payer name:
  = @order.payer_name
%p
  %b Address:
  = simple_format(@order.address)

# the rest is omitted for brevity

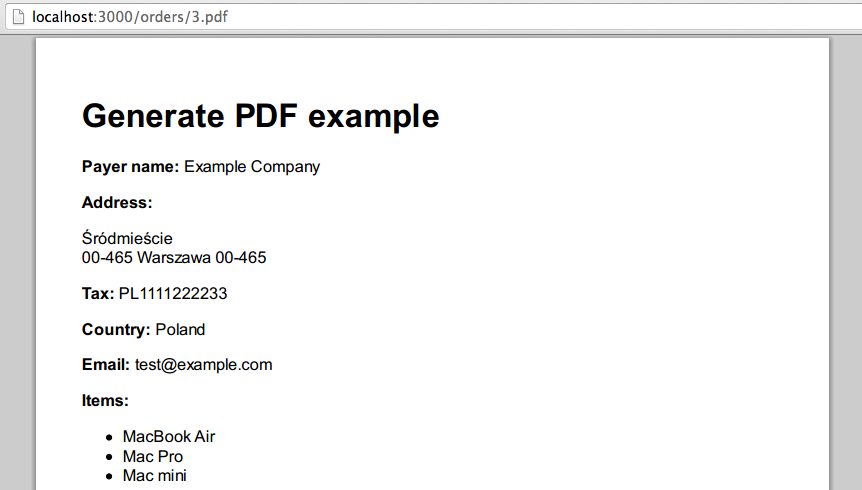

If we navigate to our first order and add .pdf extension to the URL, we will see the first generated PDF:

Great, we didn't add so much code and we are able to generate PDF files. What if we want to use custom fonts?

Adding custom fonts

I have picked Open Sans and Orbitron fonts, both downloaded from Google Fonts.

To use them in our PDF we have to create a CSS file:

# app/assets/stylesheets/pdf.css.scss

h1, li{
  font-family: 'Orbitron';
}

p{
  font-family: 'Open Sans';
}

And include it in our PDF layout with wicked_pdf_stylesheet_link_tag. wicked_pdf_* helpers embed CSS or Javascript in the HTML output, which is then used to generate PDF with wkhtmltopdf.

# app/views/layout/application.pdf.haml

!!!
%html
  %head
    %meta{charset: 'utf8'}
+   = wicked_pdf_stylesheet_link_tag "pdf"

  %body
    .container
      %h1 Generate PDF example
      = yield

We still need to add these fonts in our operating system, it may vary depending on what OS you are using. In case of Mac OS X you can add them via native Font Book app. In Ubuntu installing fonts is either done by double clicking or by adding them to ~/.fonts or /usr/share/fonts directories and rebuilding fonts cache with fc-cache.

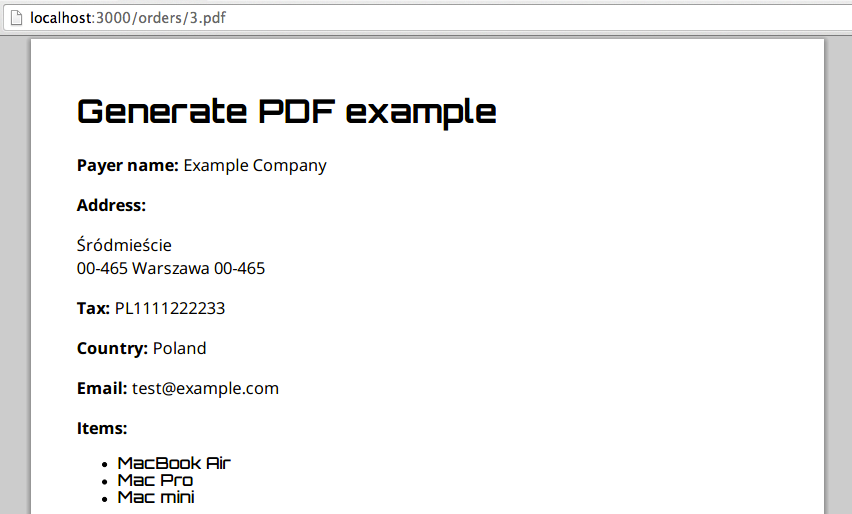

Let's try to generate the PDF again:

Fonts are rendered correctly! We can deploy our application to production.

Deploying on Shelly Cloud

We have installed fonts on our local machine. If we deploy our application to Shelly Cloud, we will notice that our neat fonts are gone. This is because they are missing on Shelly Cloud's virtual servers.

To keep our fonts in one place, we can add them to app/assets/fontsdirectory. To make sure they are always present on our virtual servers we will create a before_restart hookwith the following content:

# config/deploy/shelly/before_restart

set -e

ln -sf ~/app/current/app/assets/fonts ~/.fonts

fc-cache

It links app/assets/fonts directory to ~/.fonts and scans the font directories on the system to rebuild font information cache files. Now our PDF will be generated with proper fonts. We are done.

Other solutions

I did some research on adding fonts to wkhtmltopdf generated PDF. I found a few other possible solutions to this problem, however none of them worked or I had different results on development and production environments.

The first one was to add either absolute paths to fonts or URLs to external sources. I tried both but with no luck. The HTML was correctly rendered but the generated PDFs were actually blank.

The other solution was to encode fonts with base64 and use @font-face rule in CSS. The only restriction was to use Truetype fonts. It worked, however there were problems when multiple @font-face rules were specified for normal and bold fonts. Also rendered fonts looked different, they were not clean and crisp. I found out, on wkhtmltopdf issue tracker, that this is actually a qt-webkit bug. I have created a separate github branch with the last commit showing this technique.
